DA16600 Modules
DA16600 Modules
超低功耗Wi-Fi + BLE COMPORD IOT设备组合模块
A team of engineers is ready to answer your questions

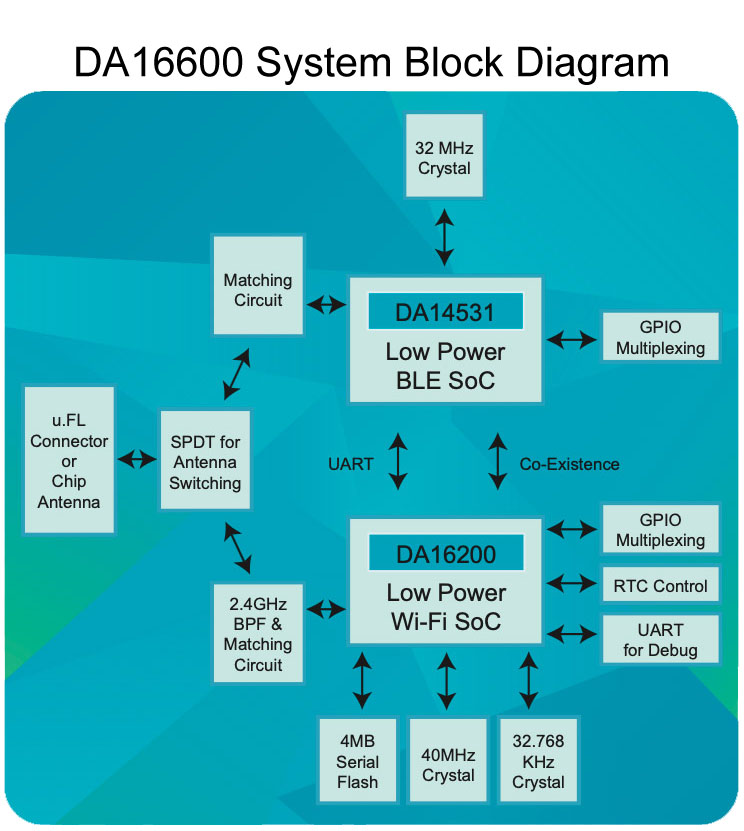

DA16600模块提供了一种方便的方法,可以为您的设备添加低功耗Wi-Fi和低功耗BLE功能。低功率Wi-FiDA16200 SOC.和低功率的漏洞DA14531 SOC.are integrated together on a single module. Together they deliver long battery life and low power consumption in a convenient form factor. As a single integrated system, functions such as Wi-Fi/BLE coexistence and provisioning Wi-Fi through the BLE connection come standard.
这些模块均具有所有必需的组件,是FCC,IC,CE和其他监管机构的监管。
完全集成的模块包括:
- Wi-Fi SoC: DA16200
- BLE SoC: DA14531
- 4MB Flash memory
- 40MHz Crystal for Wi-Fi
- 32KHz RTC Crystal for Wi-Fi
- 32MHz水晶BLE
- Chip antenna or u.FL connector
- SPDT天线切换器
- Single power supply voltage (3.3V)
A在芯片天线上 |
14.2 mm x 24.6 mm x 3.0 mm |
da16600mod-aac. |
B外部天线连接器(U.FL) |
14.2 mm x 24.6 mm x 3.0 mm |
da16600mod-aae. |
特征
- Low Power Wi-Fi
- 低功耗
- Ultra Low Power
- Wi-Fi/BLE Coexistence
- 优越的范围
- Full Offload
- 简单的设置和配置
- Complete Software Stack
- Leading Security
- OTA Firmware Update
- Multiple I/Os
好处
- VirtualZero™DA16200 SoC
- 802.11n 1x1低功耗2.4 GHz
- Up to 72 Mbps, MCS0-7
- SmartBond TINY™ DA14531 SoC
- BT5.1 compliant BLE
- Enables year-plus battery life
- Breakthrough VirtualZero low power technology
- 几乎在睡眠状态下没有功耗
- Ultra low power sensor wake-up
- 在小电池和硬币细胞上运行
- 内置,可自定义,共存算法
- Wi-Fi: Industry leading output power and Rx sensitivity for max range
- BLE: 4x range of BT 4.0
- SOC在模块上运行完整的OS和TCP / IP堆栈
- Provision Wi-Fi connection simply with BLE
- 自动查找和配置新设备w / smartphone应用程序
- 综合网络软件堆栈
- 安全启动•安全调试•安全资产存储•硬件加速•TLS•数字证书•椭圆曲线
- Enables field deployed device firmware updates
- UART,SPI,ADC,I2C,PWM,I2S,GPIO,JTAG和SWD
雷竞技安卓下载
- 恒温器
- 门锁
- Security cameras
- Video door bells
- Temperature sensors
- Smoke detectors
- Other wireless sensors
- 车库门开启者
- Pet trackers
- Asset trackers
- 家庭自动化
- 商业的
- Industrial
- 住宅
资源
日期 | Version | |
---|---|---|
DA16600模块产品简介 | 11/05/2020 | 1.0 |
