Watchdog Timer
Watchdog Timer
Safety Features Application
Watchdog timers are used for automatically generating a system reset signal if the microcontroller or microprocessor neglects to periodically send a pulse. Monitoring for low supply voltage is an additional, common feature of watchdog ICs.
配料
- 任何GreenPak W / ACMP
- No other components are needed

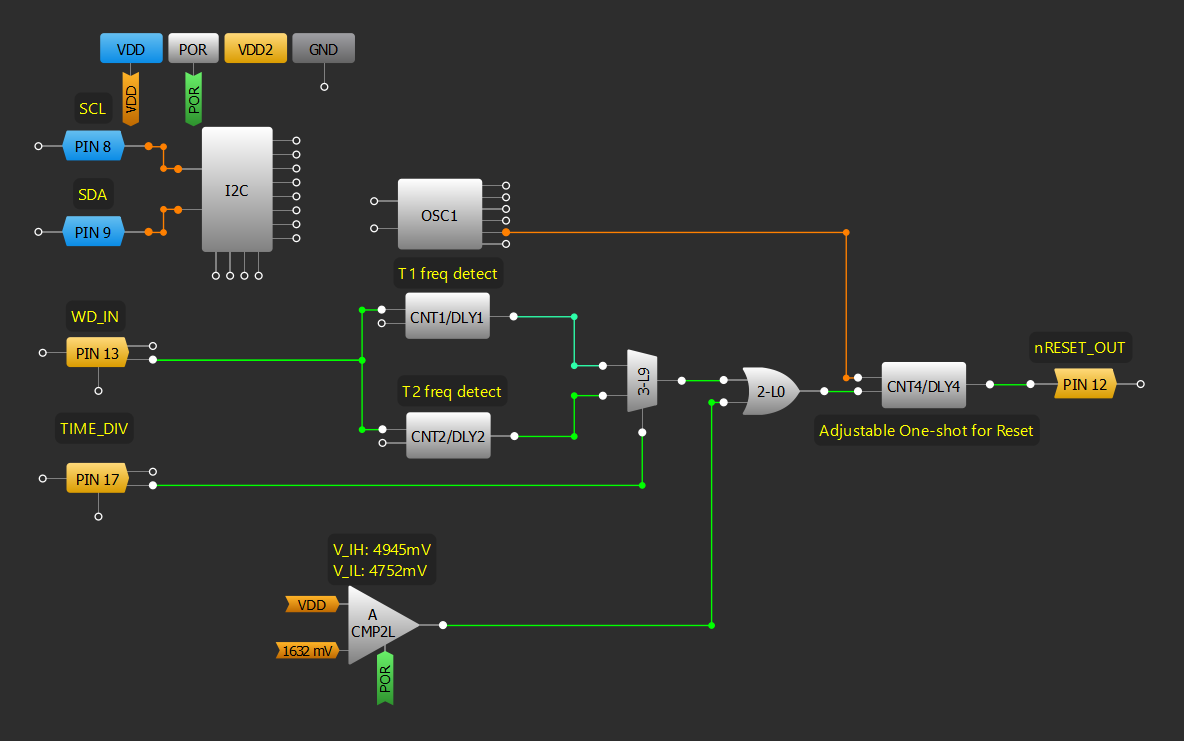

格林帕克Diagram
设计步骤
- Set undervoltage threshold with an ACMP.
- 配置两个CNT / DLLY块Frequency detects。
- Design the digital logic to combine active signals from undervoltage and watchdog timeout.
- Add a One-shot counter to trigger the reset pulse. It can be inverted to be active low.
资源
GreenPak设计师文件
- 看门狗定时器GP.(5.33 kB)
