Voltage Level Detection
Voltage Level Detection
Safety Features Application
Some applications require multiple voltage levels to be evaluated, rather than a few distinct levels. This application shows how to use of ACMPs, DCMPs, and an ADC to monitor the voltage amplitude.
Ingredients
- Any GreenPAK with ACMPs, DCMPs, and an ADC
- Up to eight LEDs and resistors

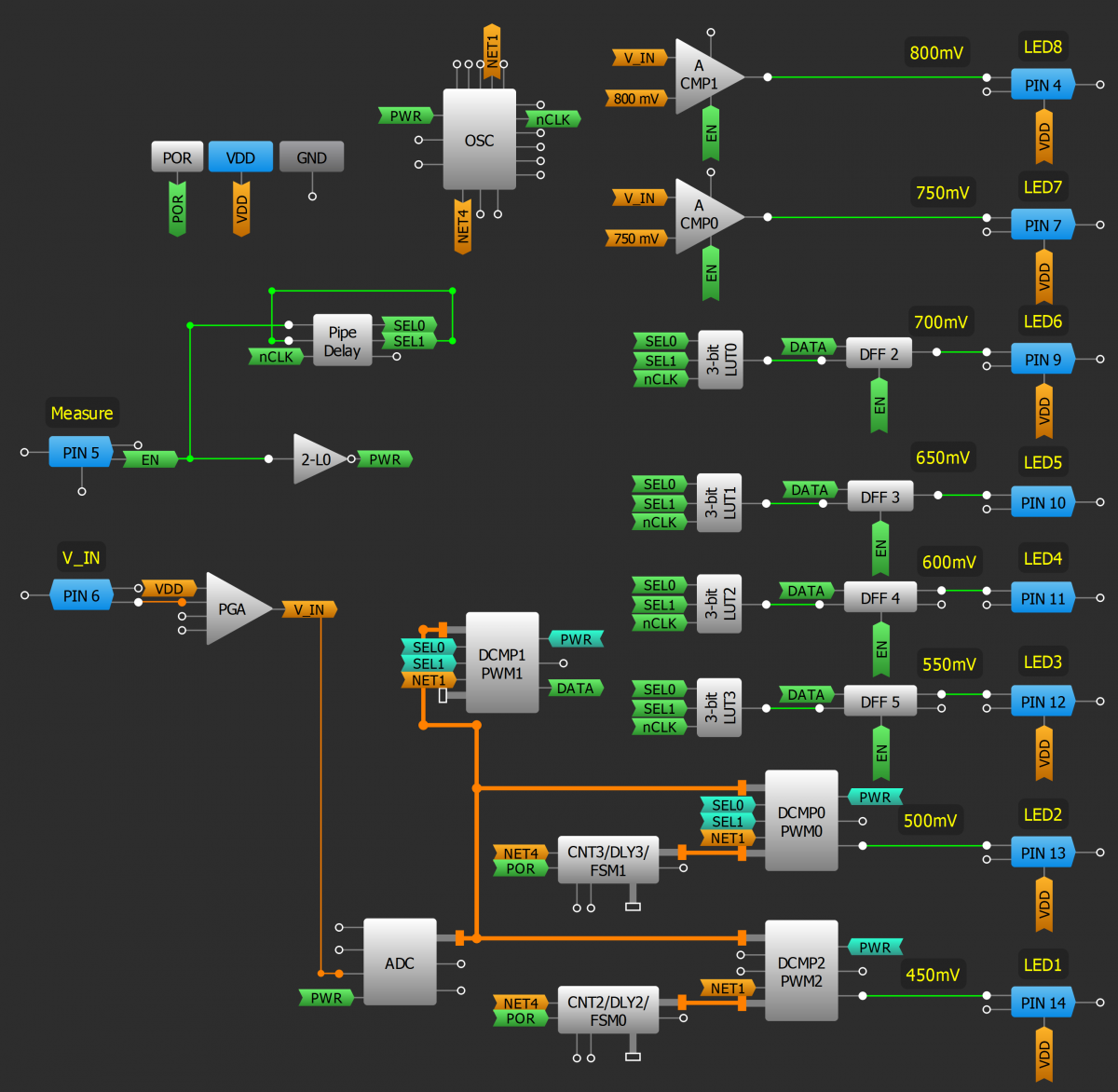

GreenPAK Diagram
Design Steps
- Power on the ADC, DCMPs, and ACMPs.
- Configure the DCMPs usingTechnique: Using DCMP PWM block in PWM mode.
- Set theIN-of each ACMP and DCMP with the desired voltage threshold levels.
- Add LUT and DFF logic to select and write data of the amplitude of the analog voltage from DCMP1.
