系统重置
系统重置
定时Functions Application
系统重置ICs are used to provide a reset to a microprocessor during faults, manual resets, brown-outs and more.
Ingredients
- 任何GreenPak.
- 不需要其他组件

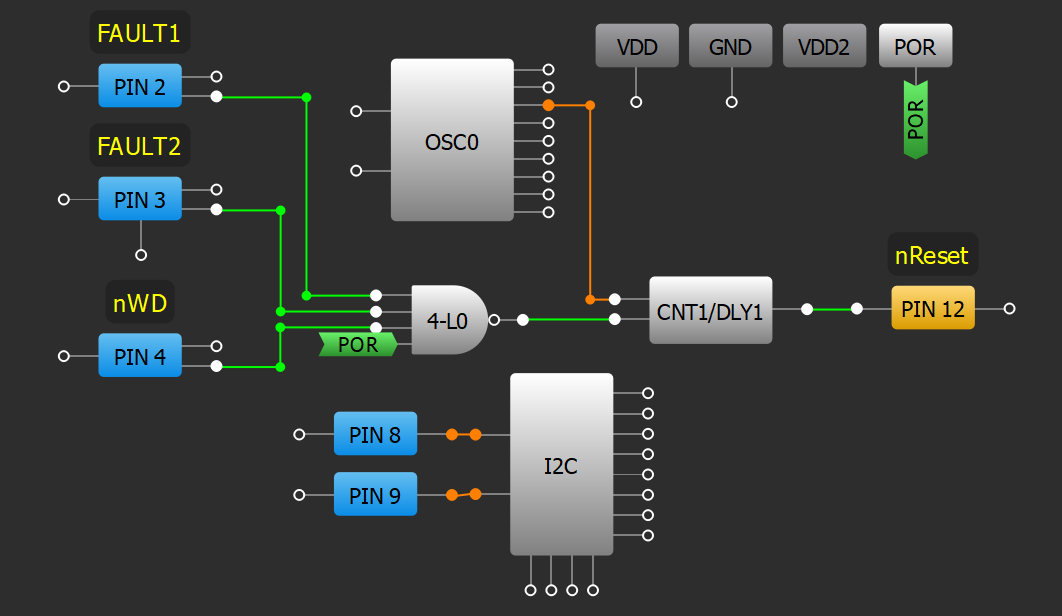

GreenPak图
Design Steps
- Configure an I/O as an input for each input signal.
- 添加LUT逻辑以在任何行处于活动状态时创建HI信号。逻辑取决于每个信号是有效的还是高电平的。
- 配置CNT / DLY块一拍模式，有Edge selectconfigured toRising. Set the计数数据创建所需的脉冲长度。对于有效的低脉冲改变Output polarityto倒（Nout）.
- Connect the CNT/DLY block’s output to an output pin.
资源
GreenPAK Designer files
- 系统重置GP（4.34 KB）
