Several-button Reset
Several-button Reset
定时Functions Application
Pressing and holding several buttons to initiate a hard reset is a common interface in many devices. Implementing this application in a separate IC ensures the reset will be acknowledged and acted upon, even if the rest of the system is experiencing one or more software, firmware, or hardware issues.
Ingredients
- 任何GreenPak.
- 不需要其他组件

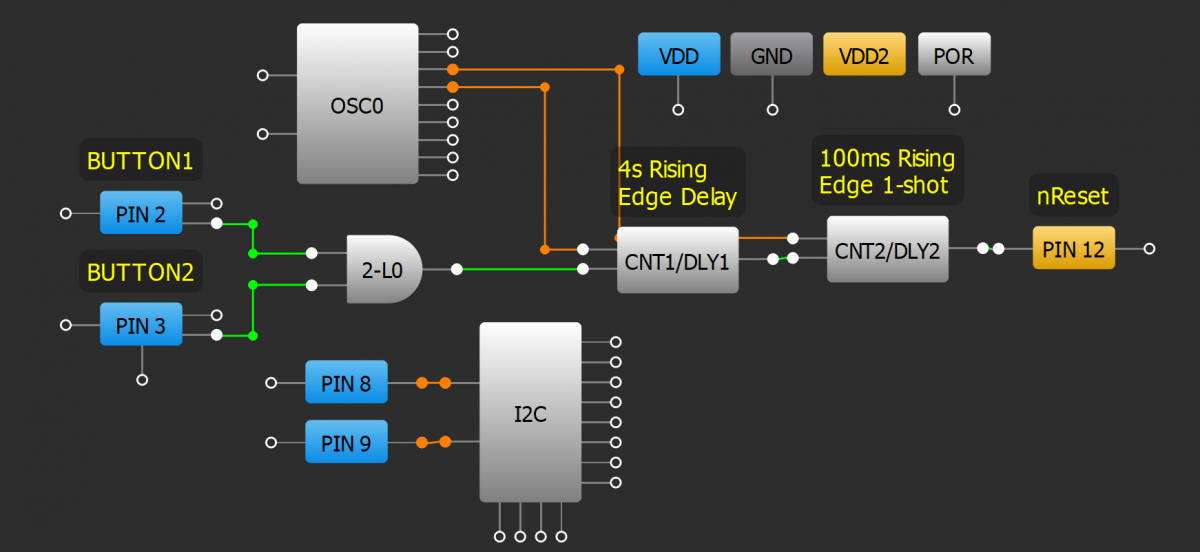

GreenPak图
Design Steps
- Configure an I/O as an input for each button.
- 添加LUT逻辑以在两个按钮处于活动状态时创建HI信号。逻辑取决于每个信号是有效的还是高电平的。
- 配置CNT / DLY块Delay模式，有Edge selectconfigured toRising. Set the计数数据to create the desired length of button hold time. For an active-low pulse change theOutput polaritytoNon-inverted (OUT).
- Configure a second CNT/DLY block to一枪模式，有Edge selectconfigured toRising. Set the计数数据创建所需的脉冲长度。对于有效的低脉冲改变Output polarityto倒（Nout）.
- Connect the CNT/DLY block’s output to an output pin.
资源
GreenPak设计师文件
- Several-button Reset GP（4.4 KB）
