Serial to Parallel (External Clock)
Serial to Parallel (External Clock)
Communication Protocols Application
Deserialization ICs are used so that data can be sent across one wire and interpreted as multiple bits of data. They often use an external clock tied to the same device as the data line to avoid clocking the data at an incorrect time.
Ingredients
- Any GreenPAK
- An IC an external clock output

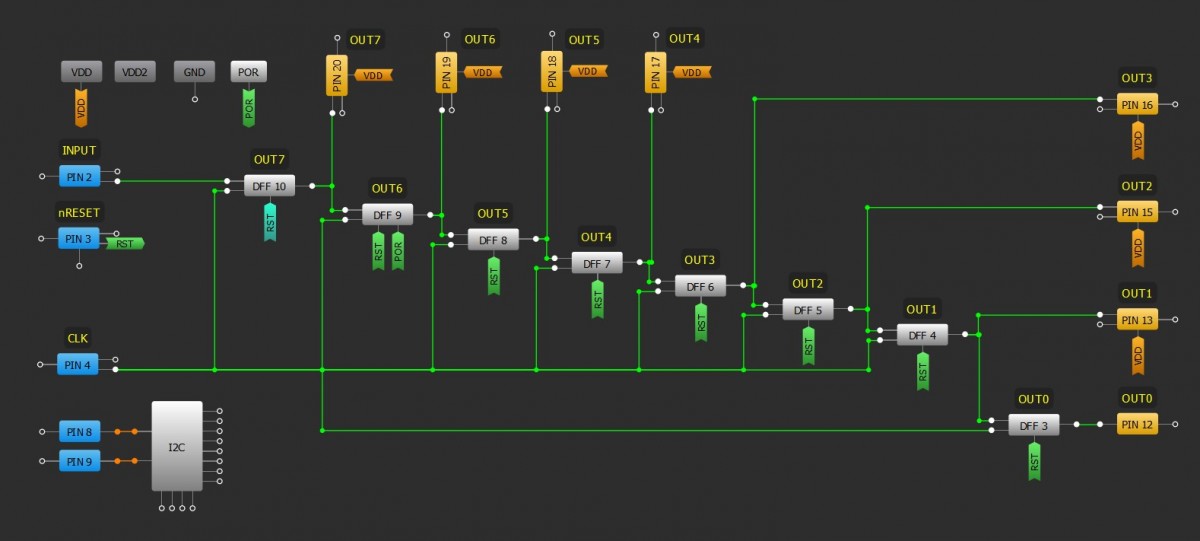

GreenPAK Diagram
Design Steps
- Configure the shift register as shown inTechnique: Building a Shift Register.
- Add an Input connection for the internal clock and connect it to theCKinput of the shift registers.
- Add an Input connection for the reset function and connect it to thenRESETof the shift registers.
