PWM Generator Using DAC and ACMP
PWM Generator Using DAC and ACMP
Pulse-based Control Application

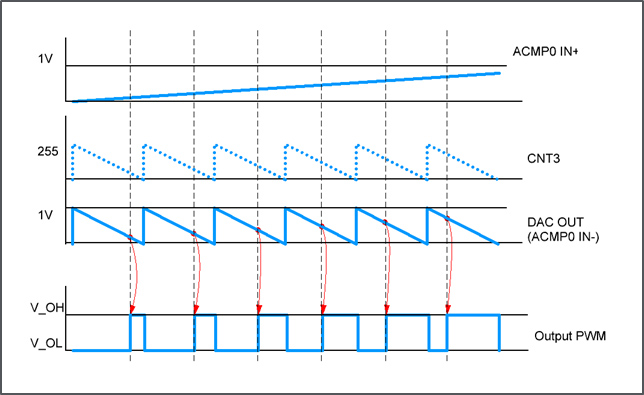

PWM generators can be used to control devices such as dc motors and LEDs。该实现使用ACMP与DAC0的信号进行比较的模拟信号。CNT3用于生成DAC的值。
Ingredients
- Greenpak与DAC.
- 不需要其他组件

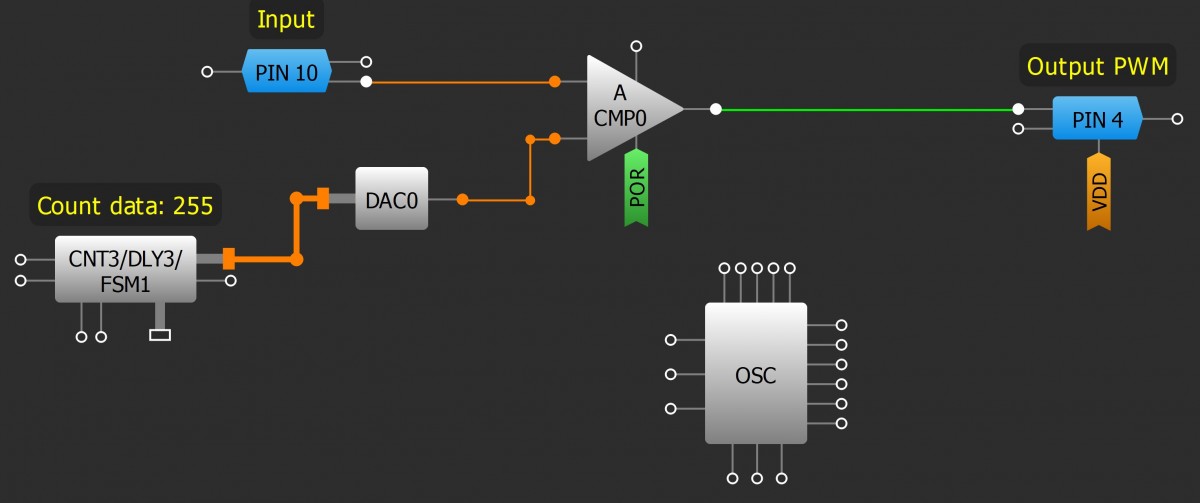

GreenPak图
Design Steps
- Connect ACMPOPWR UP输入到por。放在-sourceext。VREF（DAC0 OUT）。
- 放DAC0 power on signal to打开并输入选择来自DCMP1的输入。
- Configure FSM-compatible CNT/DLY toCounter/FSMmode with counter data = 255.
- 将RC OSC电源模式设置为力量开启。
资源
GreenPAK Designer files
- PWM Generator Using DAC and ACMP GP（2.89 KB）
