过温保护
过温保护
安全功能应用
过温保护电路广泛用于提醒系统高温系统。当内部温度超过安全阈值时，该电路可保护系统过热。
Ingredients
- Any GreenPAK w/ ACMP’s
- One resistor
- One NTC thermistor

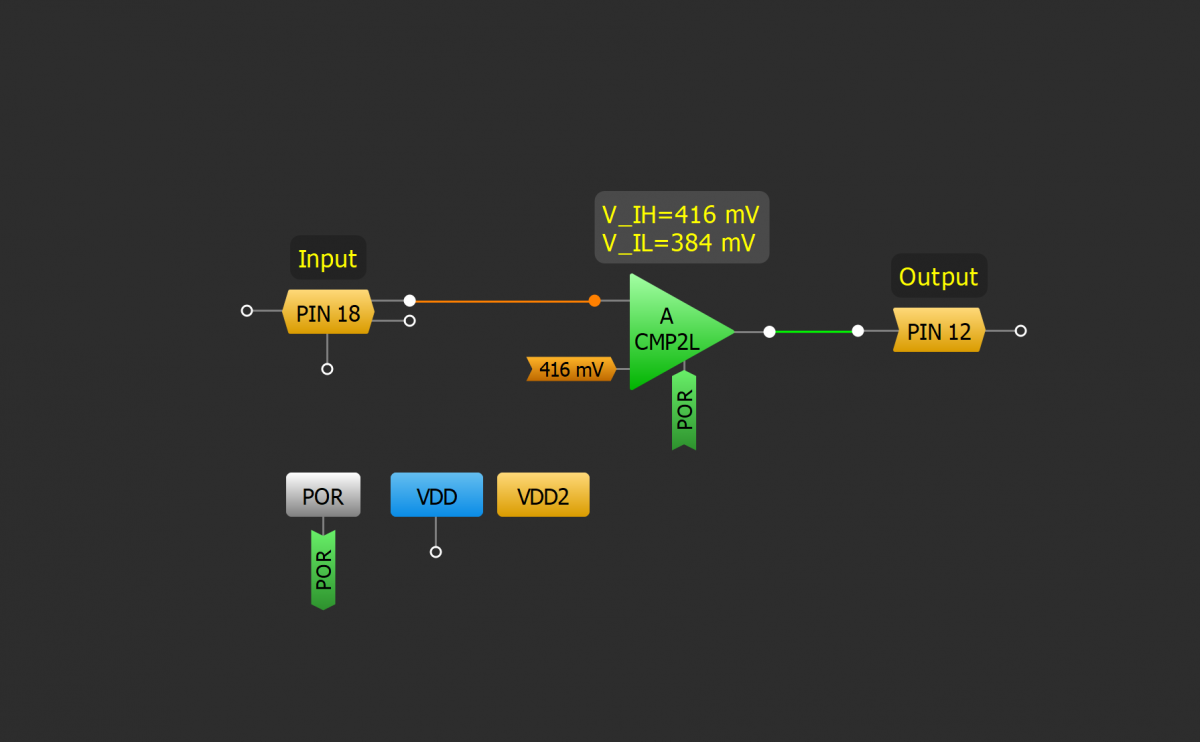

GreenPak图
Design Steps
- Set theIN+ source的ACMP2Lto Pin#18 andIN- sourceto the desired threshold.
- Connect one node of the resistor to VDD and the second node to Pin#18.
- Connect one node of the NTC thermistor to Pin#18 and the second node to GND.
资源
GreenPAK Designer files
- 过温保护GP(4.39 KB)
