分频器

Timing Functions Application

Frequency dividers are used to divide the frequency into different coefficients. It can used for improving the performance of electronic countermeasure equipment, communication systems and laboratory instruments.

Ingredients

Any GreenPAK
No other components are needed

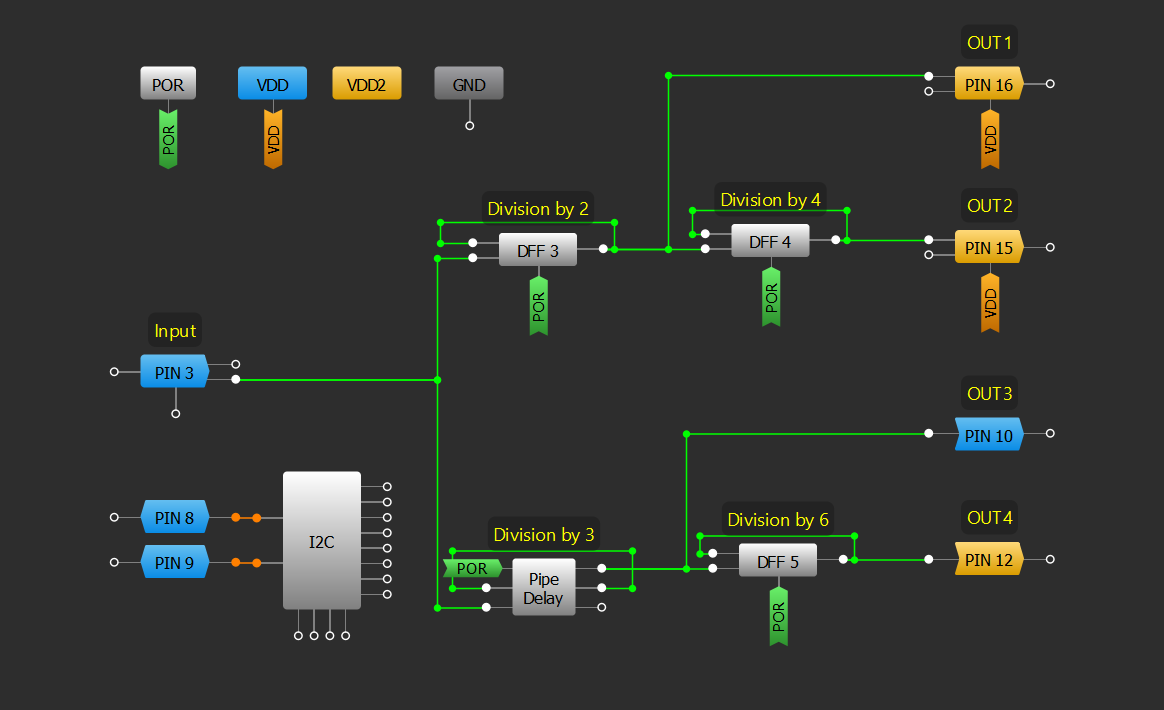

GreenPAK Diagram

Design Steps

Configure inputs for each inputs signal (Input frequency, coefficient).
Use DFF and Pipe Delay to divide the frequency for the first stage.
Use another DFF to divide the signal by a factor for the second stage.
Configure LUT logic to decide outputs into specified coefficient.

Resources

GreenPAK Designer files

分频器GP(4.62 KB)
